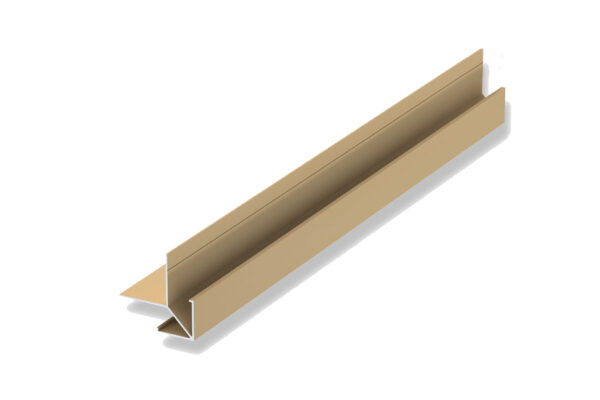

The Geolam Outside Corner (9322) is a pre-formed 90° corner trim component designed exclusively for use with Vertigo 5010 cladding installations. Rather than requiring boards to be miter-cut on site (which can leave sharp, unfinished edges), the Outside Corner provides a clean, color-matched transition wherever two cladding runs meet at an outside corner. Installed before the cladding boards are applied, it wraps the building corner with a finished profile that integrates seamlessly into the surrounding Vertigo 5010 system. Available in all four standard Vertigo colors (Teak, Moleskin, Rosewood, and Ebony), the Outside Corner is stocked in the US and eliminates one of the most time-consuming steps in any cladding installation.
✓ Matches Vertigo 5010 Finishes ✓ No On-Site Mitering Required ✓ Stocked in the USA
Key Specifications
Use
Pre-formed 90° outside corner trim for Vertigo 5010
Leg Dimensions
2″ × 2″ / 50 mm × 50 mm
Depth
1/2″ / 14 mm
Material
Powder coated aluminum (matches Vertigo 5010)
Available Colors
Teak, Moleskin, Rosewood, Ebony
Available Finishes
Color-matched to Vertigo 5010 standard colors. Sanding finish and shading may vary between production runs.
Outside Corners must be installed before cladding boards are applied. Secure to the building corner with stainless steel screws before starting the cladding run on either adjacent wall.
Cladding termination
Vertigo 5010 boards on each wall are cut to length and slide into the legs of the Outside Corner, concealing the board ends for a clean, finished appearance on both faces.
Alternative
Outside corners may also be miter-cut at 45° directly on the Vertigo boards. Note: mitered corners may be sharp. The Outside Corner (9322) eliminates this step and the associated safety risk.
Frequently Asked Questions
What is the Outside Corner used for?
It’s a pre-formed 90° corner trim piece that finishes outside corners on Vertigo 5010 cladding installations, eliminating the need to miter-cut boards on site and providing a clean, factory-finished edge.
What colors are available?
Teak, Moleskin, Rosewood, and Ebony, matching the four standard Vertigo 5010 colors, all stocked in the US.
When is it installed?
The Outside Corner must be installed before the cladding boards on both adjacent walls. Secure it to the corner first, then run cladding boards into it from each side.
Teak
Moleskin
Rosewood
Ebony
