UI Test – Careo 7014 Hybrid Aluminum & WPC Architectural Element (3 1/2” x 3 1/2”) (Copy)
The Geolam Careo 7014 is a premium hybrid architectural element featuring an anodized aluminum alloy core (A6063S-T5 Series 6000) encased in a wood-plastic composite (WPC) outer skin, produced through Geolam’s exclusive co-extrusion process. At 3½” × 3½”, it delivers the warmth of stained hardwood with the structural strength and stability of aluminum. Used by architects and builders for facades, sunshades, screens, pergolas, and architectural accents on commercial and high-end residential projects.
✓ Hybrid Aluminum/WPC
✓ Non-Combustible (ASTM E-136)
✓ Zero Maintenance
✓ Custom Lengths Available
✓ Non-Combustible (ASTM E-136)
✓ Zero Maintenance
✓ Custom Lengths Available
Key Specifications
| Dimensions | 3½” × 3½” / 88 mm × 88 mm |
| Weight | 1.88 lb/ft / 2.80 kg/lm |
| Standard Length | 9 ft 10 in / 3.0 m |
| Custom Lengths | 7 ft to 19 ft 8 in / 2.15 m to 6 m |
| Fire Rating | Non-combustible (ASTM E-136) |
| End Caps | Yes, WPC or ASA |
| Minimum Order | 1,000 lineal ft (standard colors) |
| Request a Quote |
| Order a Free Sample Box |
| Schedule a Virtual Presentation |
Key Benefits
| Authentic Wood Appearance | WPC skin replicates the look and feel of stained hardwood with a realistic sanded grain finish. |
| Non-Combustible | Certified non-combustible per ASTM E-136 (appendix), suitable for fire-sensitive commercial projects. |
| Zero Maintenance | No staining, sealing, or repainting required. Resists weathering, UV, and moisture. |
| Structural Performance | Aluminum alloy core A6063S-T5. Modulus of elasticity 68.9 GPa. Max tensile strength 186 MPa. |
| Custom Lengths | Order from 7 ft to 19 ft 8 in, reducing on-site cutting and waste. |
Applications
Commonly used for
- Facades
- Sunshades and brise-soleil
- Screens and privacy elements
- Pergolas and shade structures
- Feature walls and accents
- Soffits and ceiling treatments
Specified for
- Commercial office buildings
- Hospitality and resort projects
- Multi-family residential
- Retail and mixed-use developments
- High-end custom homes
Full Technical Specifications
| Material | Hybrid Aluminum/WPC (co-extruded) |
| Core | Anodized aluminum alloy A6063S-T5 Series 6000 |

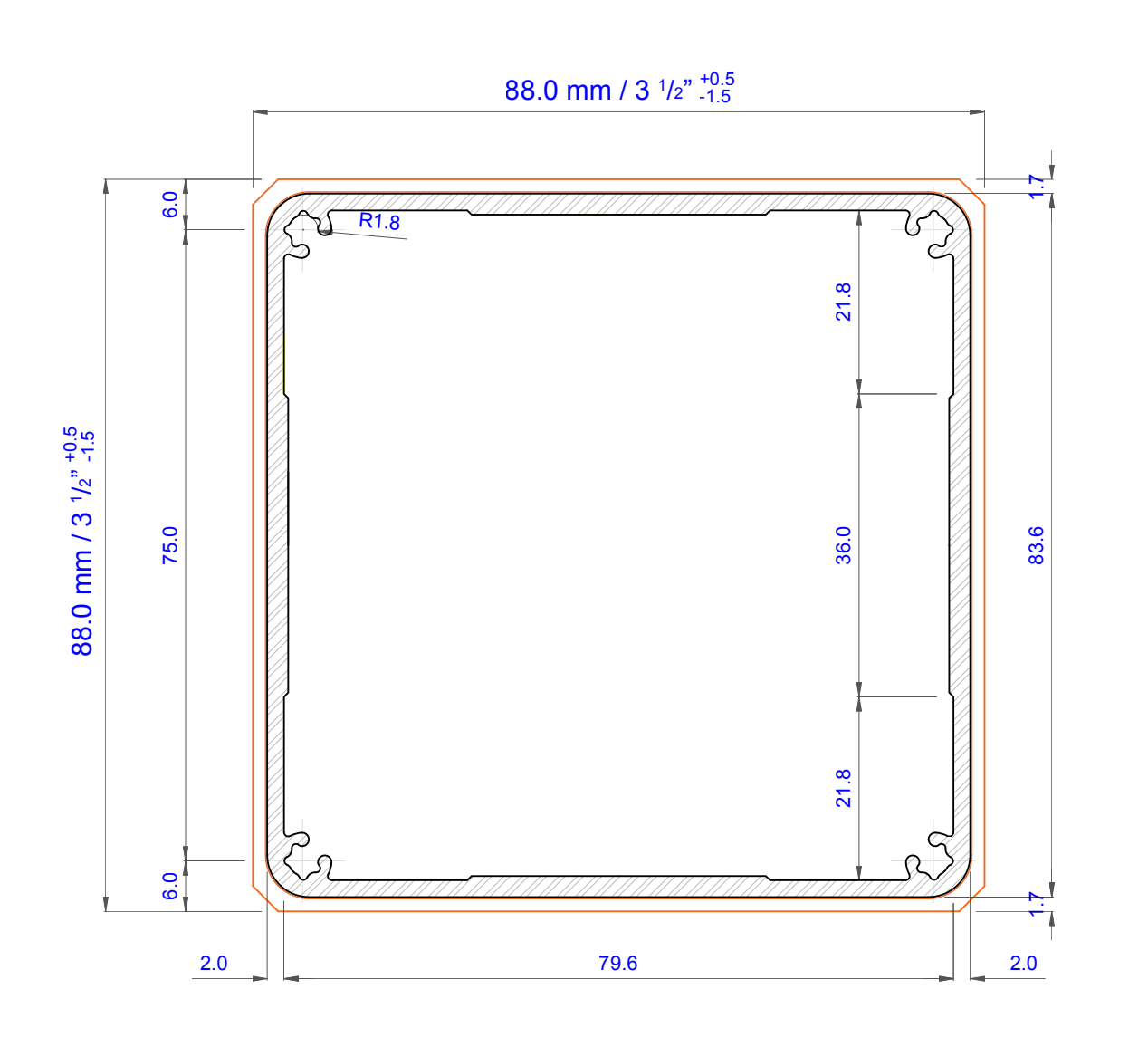

| Dimensions | 3½” × 3½” / 88 mm × 88 mm |
| Section Tolerances | +0.5 / -2.0 mm |
| Weight | 1.88 lb/ft / 2.80 kg/lm |
| Standard Length | 9 ft 10 in / 3.0 m |
| Custom Lengths | 7 ft to 19 ft 8 in / 2.15 m to 6 m |
| Surface Finish | Sanded |
| End Caps | Yes, WPC or ASA, glued with Sikaflex Crystal Clear or 3M DP-8010 |
| Fire Rating | Non-combustible (ASTM E-136 appendix) |
| Thermal Expansion | 23.4 μm/m/°C (20–100°C) |
| Modulus of Elasticity | 68.9 GPa |
| Max Tensile Strength | 186 MPa |
| Secondary Moment Ix / Iy | 81.74 cm⁴ |
| Section Modulus (all axes) | 19.55 cm³ |
| Carbon Footprint | WPC: 1.54 kg CO₂/kg / Profile: 9.005 kg CO₂/kg |
Available Finishes
Standard Colors (min. 1,000 lineal ft)
Sanded wood-grain finishes that replicate the look of stained hardwood. Sanding finish and shading may vary between production runs.
Teak
Moleskin
Rosewood
Ebony
Non-Standard Colors (min. 5,000 lineal ft, 90-day lead time)
Carbon
Bilinga
Custom colors available (min. 6,000 lineal ft). Sanding finish and shading may vary between production runs.
Installation Overview
| Fastening options | InPull nut (M6–M12), blind nut, self-tapping screw, flange bolt, or plug system |
| Cutting | Aluminum-cutting chip saws only. Max 2 m/min. Do not use grinders or chainsaws. |
| Expansion gaps | Pre-drilled holes 2–4 mm wider than bolt shaft. Washers required. 0.92 mm/m expansion per 40°C difference. |
| End caps | Glue WPC or ASA end caps with Sikaflex Crystal Clear or 3M DP-8010. Keep four weep holes unblocked. |
| Connectors | Straight connector (20 cm) for straight runs. Corner connectors for 90° joins with a nearly invisible joint. |
Hybrid Aluminum/WPC vs Traditional Wood
| Feature | Geolam Careo 7014 | Traditional Hardwood |
|---|---|---|
| Maintenance | Very low, no staining or sealing needed | High, regular treatment required |
| Fire Resistance | Non-combustible (ASTM E-136) | Combustible |
| Structural Strength | 186 MPa tensile strength | Varies, generally lower |
| Rot and insects | Resistant | Vulnerable |
| Thermal expansion | Consistent and predictable | Unpredictable, warping risk |
| Custom lengths | Up to 19 ft 8 in to order | Limited by timber availability |
| Lifespan | Very long | Moderate, maintenance dependent |
Frequently Asked Questions
| What is the Careo 7014 made of? | Anodized aluminum alloy core (A6063S-T5 Series 6000) with a wood-plastic composite outer skin, produced through Geolam’s exclusive co-extrusion process. |
| Is it fire-rated? | Yes. Certified non-combustible per ASTM E-136 (appendix). |
| Are custom lengths available? | Yes. Standard is 9 ft 10 in (3.0 m). Custom from 7 ft to 19 ft 8 in (2.15 m to 6 m). |
| What finishes are available? | Standard: Teak, Moleskin, Rosewood, Ebony (min. 1,000 lft). Non-standard: Carbon, Bilinga (5,000 lft, 90-day lead). Custom colors at 6,000 lft minimum. |
| Can it be used indoors? | Yes, it is suitable for interior feature walls, ceilings, and decorative screen elements as well as exterior applications. |
Downloads & Documents
| Careo 7014 Datasheet | Download PDF |
| Installation & Maintenance Guide | Download PDF |
| CAD Drawings | View |
| Submittal Documentation | View |
| Tests & Certifications | View |
