Soleo 6034 Deep Architectural Hybrid WPC Aluminum Batten (4 1/8″ x 2 1/8″)

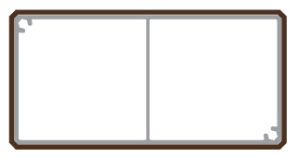

The Geolam Soleo 6034 is a deep architectural hybrid batten measuring 4 1/8″ x 2 1/8″, combining an anodized aluminum alloy core (A6063S-T5 Series 6000) with a wood/polypropylene composite (WPC) outer skin through Geolam’s exclusive co-extrusion process. Its 4 1/8″ face and 2 1/8″ depth produce a bold, chunky rectangular batten profile (close to a 2:1 face-to-depth ratio) that casts deep, pronounced shadow lines across louvered façade screen systems and brise-soleil accents, giving facade installations a strong timber-like three-dimensional character at the scale architects specify for statement screen and cladding work. End caps are available, with a 1,000 lineal ft minimum for all colors and custom lengths up to 19 ft 8 in.
✓ Hybrid Aluminum/WPC
✓ Non-Combustible (ASTM E-136)
✓ Zero Maintenance
✓ Deep 2 1/8″ Profile: Bold Shadow Line
✓ Non-Combustible (ASTM E-136)
✓ Zero Maintenance
✓ Deep 2 1/8″ Profile: Bold Shadow Line
Key Specifications
| Dimensions | 4 1/8″ x 2 1/8″ / 105 mm × 53 mm |
| Weight | 1.30 lb/ft / 1.94 kg/lm |
| Standard Length | 9 ft 10 in / 3.0 m |
| Custom Lengths | 7 ft to 19 ft 8 in / 2.15 m to 6 m |
| Fire Rating | Non-combustible (ASTM E-136) |
| End Caps | Yes, WPC or ASA |
| Connectors | No |
| Minimum Order | 1,000 lineal ft (all colors) |
Available Finishes
Standard Colors (min. 1,000 lineal ft for all colors)
Sanded wood-grain finishes that replicate the look of stained hardwood. Sanding finish and shading may vary between production runs.
Teak
Moleskin
Rosewood
EbonyNon-Standard Colors (min. 5,000 lineal ft, 90-day lead time)
Carbon
BilingaCustom colors available (min. 6,000 lineal ft). Sanding finish and shading may vary between production runs.
| Request a Quote |
| Order a Free Sample Box |
| Schedule a Virtual Presentation |
Key Benefits
| Authentic Wood Appearance | The Soleo 6034’s 4 1/8″ face and 2 1/8″ depth produce a bold, chunky rectangular batten profile that casts deep, well-defined shadow lines across louvered facade screen systems and brise-soleil accents, replicating the visual weight and warmth of large-dimension sawn hardwood with sanded wood-grain texture on all visible faces. |
| Non-Combustible | Certified non-combustible per ASTM E-136 (appendix), qualifying the Soleo 6034 for fire-regulated commercial, high-rise, and institutional facade and screen applications. |
| Zero Maintenance | The Soleo 6034 resists UV fading, moisture ingress, and weathering across its full service life without staining, sealing, or painting at any point. |
| Performance | The aluminum alloy core delivers a secondary moment of 62.44 cm⁴ along the length axis at 1.30 lb/ft, with equal section moduli on both axes (Z+y/Z-y: 12.36 cm³), providing consistent bending stiffness whether the profile is oriented horizontally or vertically, and a thermal expansion coefficient of 23.4 μm/m/°C for predictable dimensional behavior across large-span screen systems. |
| Custom Lengths | Available from 7 ft to 19 ft 8 in (2.15 m to 6 m), with end caps available to finish exposed batten ends cleanly on louvered screen and facade runs. |
Applications
Commonly used for
- Deep-profile louvered facade screens
- Statement brise-soleil & sunshade systems
- Bold decorative facade cladding accents
- Privacy screens & fencing
- Pergolas
- Interior feature walls & ceiling elements
Specified for
- Commercial office & mixed-use developments
- Hospitality: hotels, resorts & restaurants
- Multi-family residential & condominiums
- Retail & entertainment venues
- Institutional & civic buildings
Full Technical Specifications
| Material | Hybrid Aluminum/WPC (co-extruded) |
| Core | Anodized aluminum alloy A6063S-T5 Series 6000 |
| Dimensions | 4 1/8″ x 2 1/8″ / 105 mm × 53 mm |
| Section Tolerances | +0.5 / -2.0 mm |
| Weight | 1.30 lb/ft / 1.94 kg/lm |
| Standard Length | 9 ft 10 in / 3.0 m |
| Custom Lengths | 7 ft to 19 ft 8 in / 2.15 m to 6 m |
| Surface Finish | Sanded |
| End Caps | Yes, WPC or ASA, glued with Sikaflex Crystal Clear or 3M DP-8010 |
| Connectors | No |
| Fire Rating | Non-combustible (ASTM E-136 appendix) |
| Thermal Expansion | 23.4 μm/m/°C (20–100°C) |
| Modulus of Elasticity | 68.9 GPa |
| Max Tensile Strength | 186 MPa |
| Secondary Moment Ix / Iy | 20.57 cm⁴ / 62.44 cm⁴ |
| Section Modulus Z+x / Z-x | 8.48 cm³ / 8.48 cm³ |
| Section Modulus Z+y / Z-y | 12.36 cm³ / 12.36 cm³ |
| Carbon Footprint | WPC: 1.54 kg CO₂/kg / Profile: 9.005 kg CO₂/kg |
Installation Overview
| Fastening options | InPull nut (M6–M12), blind nut, self-tapping screw, flange bolt, or plug system |
| Cutting | Aluminum-cutting chip saws only. Max 2 m/min. Do not use grinders or chainsaws. |
| Expansion gaps | Pre-drilled holes 2–4 mm wider than bolt shaft. Washers required. 0.92 mm/m expansion per 40°C difference. |
| End caps | Glue WPC or ASA end caps with Sikaflex Crystal Clear or 3M DP-8010. Keep four weep holes unblocked. Minimum order: 100 pieces. |
| Connectors | Connectors are not available for the Soleo 6034. Specify required lengths at time of order to minimize on-site joins. |
Geolam Technology VS. Alternative Technologies
See how Geolam compares to the leading alternative materials on the market.
| Parameter | Geolam | AluminumLongboard, Knotwood, Dizal, Lynx | Phenolics / HPLProdema, Fundermax, Trespa | WPCWood’n | Rice Hulls / PVCResysta | Terracotta BaguettesBoston Valley, Terreal | Natural WoodIpé, Cedar, PT |
|---|---|---|---|---|---|---|---|
| Aesthetic | ✓ Authentic wood grain | ✗ Printed finish | ✗ No true woodgrain | ✗ Visible butt joints | ✗ Needs finishing | ✗ Smooth, no grain | ✓ Natural warmth |
| Maintenance | ✓ Zero, clean only | ✗ Annual cleaning log | ✓ Zero, clean only | ✗ Regular cleaning | ✗ Needs refinishing | ✓ Zero, clean only | ✗ Frequent refinishing |
| Fire Rating | ✓ ASTM E136 NC | ✓ ASTM E136 NC | ✗ Class A/B, needs NFPA 285 | ✗ Class A, combustible | ✗ Class A, combustible | ✓ ASTM E136 NC | ✗ Combustible |
| Scratch Resistance | ✓ 35-yr proven, sandable | ✗ Visible scratches | ✗ Visible scratches | ✗ Visible scratches | ✗ Visible scratches | ✗ Visible scratches | ✗ Visible scratches |
| Custom Lengths | ✓ Up to 19’8″ | ✗ 12’–24′ standard only | ✓ Up to 4′ x 10′ | ✗ 12′ standard only | ✗ 12′ standard only | ✗ 6′ max | ✗ 8’–12′ (species-based) |
| Warranty | ✓ 10-yr non-prorated | ✓ 25–50 yr, may prorate | ✓ 10-yr, prorated finish | ✗ 5-yr (handled abroad) | ✓ 25-yr, no finish warranty | ✓ 30-yr | ✗ None |
| Installation | ✓ Ready to install | ✗ Requires furring | ✗ Requires sub-framing | ✗ Furring & clips | ✗ Specific furring spacing | ✗ Complex, engineered | ✗ Furring typical |
See full comparison charts & videos →
Frequently Asked Questions
| What is the Soleo 6034 made of? | The Soleo 6034 is co-extruded with an anodized aluminum alloy core (A6063S-T5, Series 6000) and a wood/polypropylene composite (WPC) outer skin, producing a deep 4 1/8" x 2 1/8" batten profile with a sanded wood-grain surface on all visible faces. |
| Is it fire-rated? | Yes. The Soleo 6034 is certified non-combustible per ASTM E-136 (appendix), qualifying it for fire-regulated commercial, high-rise, and institutional projects. |
| What is the minimum order? | The minimum order is 1,000 lineal ft for all standard colors (Teak, Moleskin, Rosewood, and Ebony). Non-standard colors Carbon and Bilinga require 5,000 lineal ft with a 90-day lead time. Custom colors require 6,000 lineal ft. |
| Are connectors available? | Connectors are not available for the Soleo 6034. End caps (WPC or ASA) are available with a minimum order of 100 pieces. Specify your required lengths at time of order. |
| How does the 6034 differ from the Soleo 6009? | Both share a similar face width (4 1/8" vs 4"), but the 6034 is significantly deeper at 2 1/8" (53 mm) vs 1 1/4" (30 mm) on the 6009. The 6034's greater depth produces a much more pronounced shadow line, a higher secondary moment (62.44 vs 38.74 cm⁴), and a bolder three-dimensional character across louvered screen and brise-soleil systems. Choose the 6009 for a flatter, plank-style look; choose the 6034 when depth and shadow definition are the design priority. |
